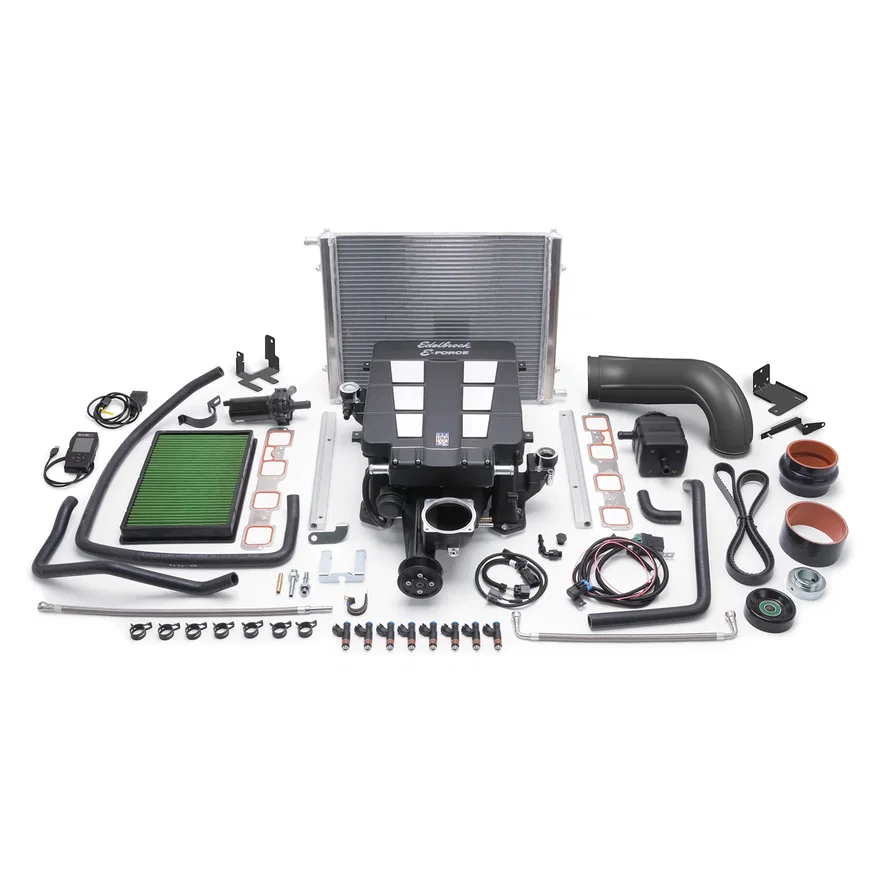

Edelbrock Stage 1 Supercharger #15175 For 2015-18 Dodge Ram 1500 5.7L W/ Tune

Part # 15175SKU EDE15175

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationYes
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Fuel Injector Type46
Gasket Or Seal IncludedYes
Harmonic Balancer DiameterStock
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Maximum Boost Pressure14 PSI
Maximum Horsepower439RW
Maximum Pressure Reading14 PSI
Maximum Torque444RW
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity150 mL
Outside Pulley Diameter3.25 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 2300
System TypeStage 1 - Street System
Universal Or Specific FitSpecific
Vehicle ModelRam Truck
UPC / GTIN00085347151752

Description

The Edelbrock Supercharger System part #15175 for 2015-18 Dodge RAM trucks equipped with a 5.7 HEMI V8 engine delivers 439 RWHP and 444 RWTQ. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. ALL 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification.. HANDHELD PROGRAMMER NOT INCLUDED. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

Fits these vehicles 1

YearMakeModelEngine
2015 - 2018Ram15005.7L 345 V8
