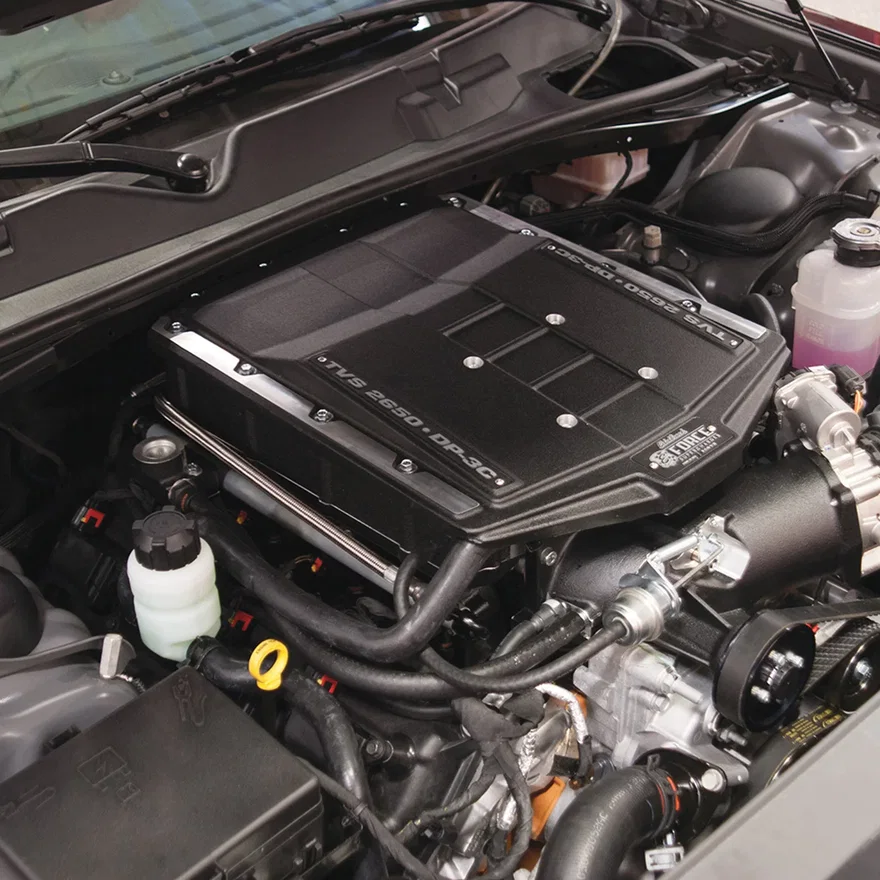

Edelbrock Stg 1 Supercharger #15172, 15-18 Chrysler/Dodge 6.4L LX & LC W/ Tune

Part # 15172SKU EDE15172

Set your vehicle above for a fit verdict. 2 vehicles listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationYes
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Fuel Injector Type60
Fuel Pump IncludedYes
Gasket Or Seal IncludedYes
Harmonic Balancer DiameterStock
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Maximum Boost Pressure14 PSI
Maximum Horsepower572RW (With 91 Octane)
Maximum Pressure Reading14 PSI
Maximum Torque531RW (With 91 Octane)
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity150 mL
Outside Pulley Diameter3.25 in
Pulley Belt Width6-Rib
QuantityKit
Rotor TypeEaton TVS 2650
System TypeStage 1 - Street System
Tensioner IncludedYes
Universal Or Specific FitSpecific
Vehicle ModelCharger
UPC / GTIN00085347151721

Description

The Edelbrock Supercharger System part #15172 is designed for use with 2015-18 Dodge Charger and Challenger 6.4L cars. It delivers 572 horsepower and 531 ft-lbs of torque at the rear wheels. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of this system is the Eaton Gen VI R2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. ALL 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification.. HANDHELD PROGRAMMER NOT INCLUDED. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

Fits these vehicles 2

YearMakeModelEngine
2015 - 2018DodgeChallenger6.4L 392 V8
2015 - 2018DodgeCharger6.4L 392 V8
