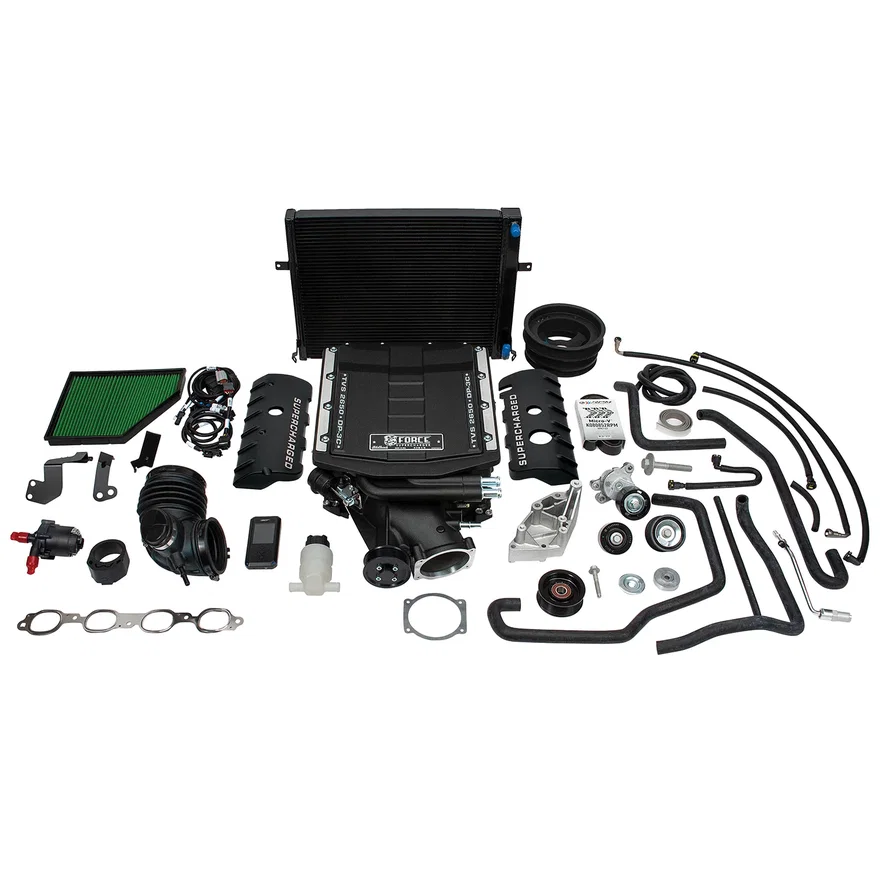

Edelbrock Stg 1 Supercharger #15595, 2016-24 Chevy Camaro SS LT1 6.2L All Trans W/ Tune

Part # 15595SKU EDE15595

Set your vehicle above for a fit verdict. 1 vehicle listed below.

Specifications
BrandEdelbrock
Part typeSupercharger Kit
Air Filter IncludedYes
CalibrationYes
Center Housing Cooling TypeIntercooler
FinishBlack Powder Coated
Gasket Or Seal IncludedYes
Harmonic Balancer Diameter8.11 in
Hose IncludedYes
Housing MaterialCast Aluminum
Internal Step UpYes
Maximum Boost Pressure13.5 PSI
Maximum Horsepower609
Maximum Pressure Reading13.5 PSI
Maximum Torque587
Mounting Bracket IncludedYes
Mounting Hardware IncludedYes
Oil Capacity150 mL
Outside Pulley Diameter4 in
Pulley Belt Width8-Rib
QuantityKit
Rotor TypeEaton TVS 2650
System TypeStage 1 - Street System
Tensioner IncludedYes
Transmission TypeAutomatic and Manual
Universal Or Specific FitSpecific
Vehicle ModelCamaro
UPC / GTIN00085347155958

Description

The Edelbrock supercharger #15595 is a 50-state emissions-legal power adder designed for use with the 2016-24 Chevrolet Camaro SS 6.2L LT1. This Stage 1 system features a manifold that houses Eaton's biggest R2650 TVS rotor assembly with 170-degree high-twist lobes, bigger bearings and beefier timing gears for unparalleled efficiency and reliability. This is a true bolt-on supercharger kit that requires no additional modifications to the stock 6.2L engine and fits under the Camaro hood with no cutting or modification. With a dyno-tested output of 609 horsepower and 587 ft-lbs of torque, the increase in power comes with little to no loss in fuel economy thanks to the supercharger's integrated bypass valve that mitigates parasitic power loss during normal driving. For those who want more power, the R2650 supercharger can support more than 1,000 horsepower at the flywheel with the right combination of parts. The Edelbrock supercharger for the Camaro has a self-contained lubrication system with a 100,000-mile service interval, a high-capacity Dual-Pass 3-Core (DP3C) integrated intercooler and comes finished in a durable black powder-coating. Each #15595 kit comes complete with hand-held tuner, a set of preformed hoses, hardware and a full-color manual that provides step-by-step instructions for ease of installation. This system is designed and manufactured in the USA and is covered by Edelbrock's industry-leading 3-year/36,000-mile warranty.

Fits these vehicles 1

YearMakeModelSubmodel
2016ChevroletCamaroSS
