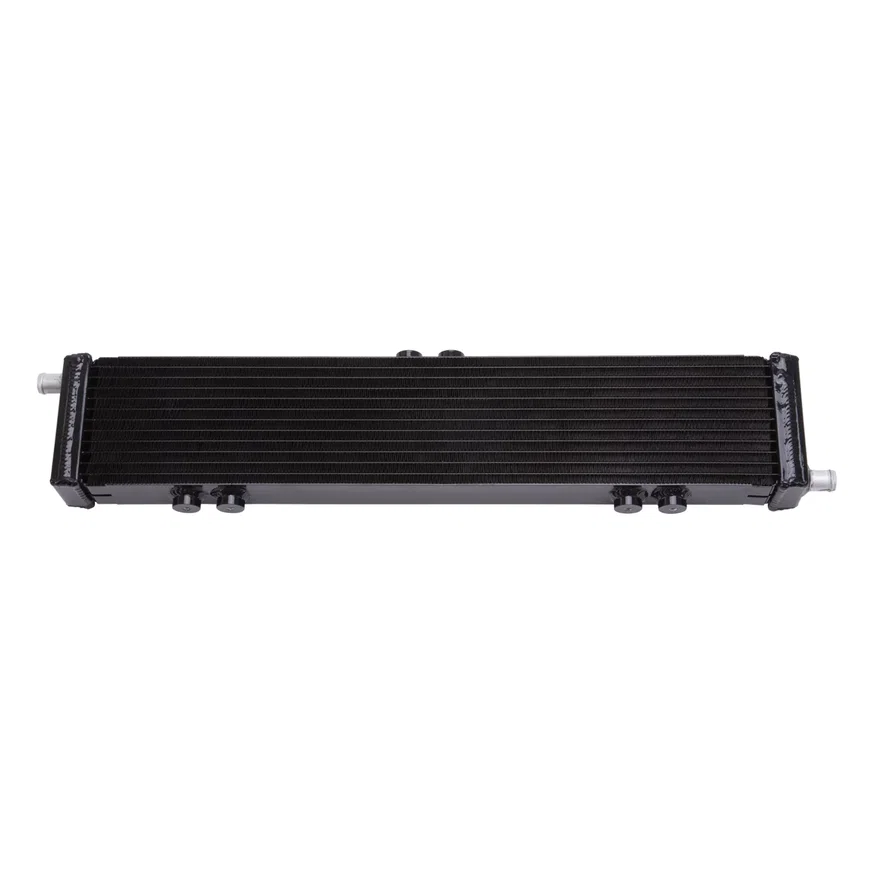

Edelbrock Single Pass/Two Row Universal Heat Exchanger (26.5"W/5"H/2.62"D) 22,000 BTU
Part # 15406SKU EDE15406
Universal fit
| Brand | Edelbrock |
|---|---|
| Part type | Supercharger Heat Exchanger |
| BTU Rating | 22000 btu/hr |
| Construction | Single Pass |
| Finish | Gloss Black Powder Coated |
| Grade Type | Performance |
| Inlet Port Outside Diameter | 0.75 in |
| Inlet Port Quantity | 1 |
| Length | 26.58 in |
| Material | Aluminum |
| Mounting Hardware Included | No |
| Mounting Hole Diameter | M6 x 1.0 |
| Mounting Hole Quantity | 6 |
| Outlet Port Outside Diameter | 0.75 in |
| Outlet Port Quantity | 1 |
| Quantity | Sold Individually |
| Row Quantity | Two |
| Thickness | 2.62 in |
| Width | 5.2 in |
| UPC / GTIN | 00085347154067 |
Description
Edelbrock heat exchanger part #15406 is a single pass/two row design and delivers 22,000 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting. Heat exchanger part #15406 is a Single Pass/Two Row Universal Heat Exchanger with the following dimensions (26.5in. W x 5in. H x 2.62in. D) and 6 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.
